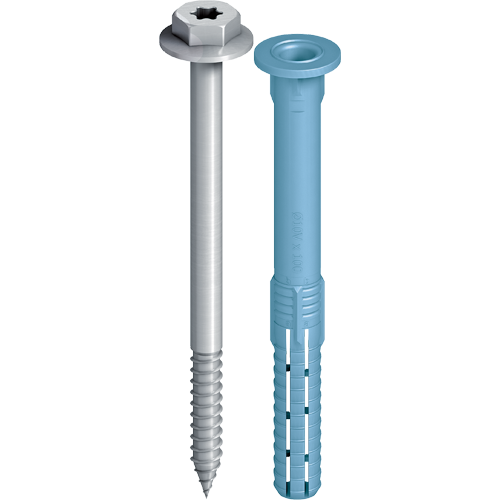

EJOT® facade anchor SDF-KB-10V

Specification

  • Applications

    • Installation of metal attachments
    • For multiple fastening of non-load-bearing systems according to EAD 330284-00-0604
    • Suitable for the structural fastening of wall cupboards, cladding, metal angle pieces
    • For application as single fastening in concrete
  • Properties

    • Hexagon head with flange
    • When used according to ETAG 020, embedment depth in concrete can be reduced to 40 mm (hnom,1)
    • Very short expansion part for extremely fast installation
    • Optimal expanding part due to radial expansion
    • Very high bending moment
    • Product identification through different sleeve colours
    • Double safety lock against torsion for secure installation

    Base materials
    Approved for

    • Cracked concrete
    • Non-cracked concrete
    • Solid masonry
    • Hollow and perforated bricks

    Note
    For planning and processing, please observe ETA-10/0305 and Z-21.2-2122. Further information about parameters and loads can be found in the approvals. For bricks of unknown quality, the load-bearing capacity must be determined through pull-out tests on the structure.

  • Technical specifications

    Characteristic values

    • Diameter: 10 mm
    • Hole depth in concrete h1.1: ≥ 50 mm
    • Effective embedment depth in concrete hnom,1: ≥ 40 mm
    • Hole depth in masonry h1.2: ≥ 60 mm
    • Effective embedment depth in masonry hnom,2: ≥ 50 mm
    • Drill hole diameter d0: 10 mm
    • Through hole diameter of component to be attached df: ≤ 10.5 mm
    • Drive: A/F13/T40

    Admissible loads

    • Tensile load NRk,p in concrete C12/15
      • Temperature range 30 °C / 50 °C: 1.79 kN
      • Temperature range 50 °C / 80 °C: 1.59 kN
    • FRk brick Mz 20-1.8, NF: 0.71 kN
    • FRk solid sand-lime brick KS 36, NF: 1.14 kN
    • FRk solid sand-lime brick KS 20, 8 DF: 1.29 kN
    • Transverse load VRk,s in concrete C12/15 at hnom,1 = 40 mm
      • Steel screw (γMs = 1.25): 6.34 kN
      • Stainless steel screw (γMs = 1.56): 5.85 kN
    • Transverse load VRk,s at hnom,2 = 50 mm
      • Steel screw (γMs = 1.25): 8.87 kN
      • Stainless steel screw (γMs = 1.56: 8.29 kN
    • Bending moment MRk,s at hnom,1 = 40 mm
      • Steel screw (γMs = 1.25): 11.04 Nm
      • Stainless steel screw (γMs = 1.56: 10.31 Nm
    • Bending moment MRk,s at hnom,2 = 50 mm
      • Steel screw (γMs = 1.25): 18.41 Nm
      • Stainless steel screw (γMs = 1.56: 17.06 Nm

Further lengths available upon request

Filter

Selected filters

    Orderidentifier Article Number ø mm Material Length mm Clamping thickness (concrete)B ≥ mm Clamping thickness (masonry) B ≥ mm Unit
    SDF-KB-10Vx50-V 8581050450 10.0 Carbon Steel 50.0 10.0 0.0 100

    Specifications

    ø
    10.0
    Material
    Carbon Steel
    Length
    50.0
    Clamping thickness (concrete)B ≥
    10.0
    Clamping thickness (masonry) B ≥
    0.0
    Orderidentifier
    SDF-KB-10Vx50-V
    Unit
    100
    SDF-KB-10Vx50-E 8581050650 10.0 Stainless Steel 50.0 10.0 100

    Specifications

    ø
    10.0
    Material
    Stainless Steel
    Length
    50.0
    Clamping thickness (concrete)B ≥
    10.0
    Clamping thickness (masonry) B ≥
    Orderidentifier
    SDF-KB-10Vx50-E
    Unit
    100
    SDF-KB-10Vx60-V 8581060450 10.0 Carbon Steel 60.0 20.0 10.0 100

    Specifications

    ø
    10.0
    Material
    Carbon Steel
    Length
    60.0
    Clamping thickness (concrete)B ≥
    20.0
    Clamping thickness (masonry) B ≥
    10.0
    Orderidentifier
    SDF-KB-10Vx60-V
    Unit
    100
    SDF-KB-10Vx60-E 8581060650 10.0 Stainless Steel 60.0 20.0 10.0 100

    Specifications

    ø
    10.0
    Material
    Stainless Steel
    Length
    60.0
    Clamping thickness (concrete)B ≥
    20.0
    Clamping thickness (masonry) B ≥
    10.0
    Orderidentifier
    SDF-KB-10Vx60-E
    Unit
    100
    SDF-KB-10Vx70-V 8581070450 10.0 Carbon Steel 70.0 30.0 20.0 100

    Specifications

    ø
    10.0
    Material
    Carbon Steel
    Length
    70.0
    Clamping thickness (concrete)B ≥
    30.0
    Clamping thickness (masonry) B ≥
    20.0
    Orderidentifier
    SDF-KB-10Vx70-V
    Unit
    100
    SDF-KB-10Vx70-E 8581070650 10.0 Stainless Steel 70.0 30.0 20.0 100

    Specifications

    ø
    10.0
    Material
    Stainless Steel
    Length
    70.0
    Clamping thickness (concrete)B ≥
    30.0
    Clamping thickness (masonry) B ≥
    20.0
    Orderidentifier
    SDF-KB-10Vx70-E
    Unit
    100
    SDF-KB-10Vx80-V 8581080450 10.0 Carbon Steel 80.0 40.0 30.0 100

    Specifications

    ø
    10.0
    Material
    Carbon Steel
    Length
    80.0
    Clamping thickness (concrete)B ≥
    40.0
    Clamping thickness (masonry) B ≥
    30.0
    Orderidentifier
    SDF-KB-10Vx80-V
    Unit
    100
    SDF-KB-10Vx100-V 8581100450 10.0 Carbon Steel 100.0 60.0 50.0 50

    Specifications

    ø
    10.0
    Material
    Carbon Steel
    Length
    100.0
    Clamping thickness (concrete)B ≥
    60.0
    Clamping thickness (masonry) B ≥
    50.0
    Orderidentifier
    SDF-KB-10Vx100-V
    Unit
    50
    SDF-KB-10Vx120-V 8581120450 10.0 Carbon Steel 120.0 80.0 70.0 50

    Specifications

    ø
    10.0
    Material
    Carbon Steel
    Length
    120.0
    Clamping thickness (concrete)B ≥
    80.0
    Clamping thickness (masonry) B ≥
    70.0
    Orderidentifier
    SDF-KB-10Vx120-V
    Unit
    50
    SDF-KB-10Vx140-V 8581140450 10.0 Carbon Steel 140.0 100.0 90.0 50

    Specifications

    ø
    10.0
    Material
    Carbon Steel
    Length
    140.0
    Clamping thickness (concrete)B ≥
    100.0
    Clamping thickness (masonry) B ≥
    90.0
    Orderidentifier
    SDF-KB-10Vx140-V
    Unit
    50
