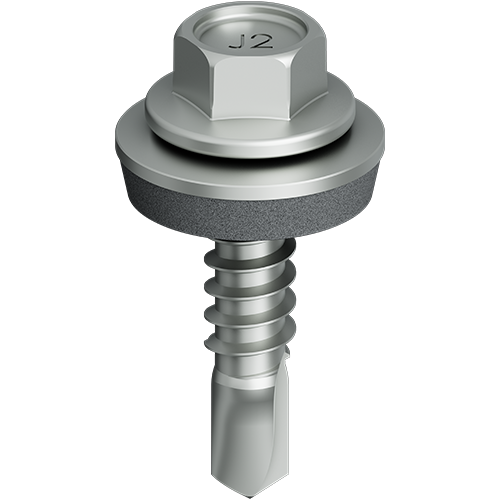

EJOT® self-drilling screw JT2-6-5.5 F12 EJOGUARD

jt2-6-5.5-f12

Specification

  • Applications

    • Fastening profiled steel sheets to 1.5 - 4 mm steel substructure
    • For high-strength steel substructures according to ETA-10/0200

  • Properties

    • Case-hardened steel, protected against corrosion
    • Steel sealing washer, zinc-plated
    • Pre-assembled sealing washer
    • Stainless steel sealing washer

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 2.0 + 4.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1500 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Fastener material Unit
    PF JT2-6-5.5X20 EJOGUARD A16 BR98400113 5.5 0 - none 20.0 Carbon Steel 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    0 - none
    Length
    20.0
    Fastener material
    Carbon Steel
    Orderidentifier
    PF JT2-6-5.5X20 EJOGUARD A16
    Unit
    500
    PF JT2-6-5.5X25 EJOGUARD A16 BR98400116 5.5 0 - none 25.0 Carbon Steel 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    0 - none
    Length
    25.0
    Fastener material
    Carbon Steel
    Orderidentifier
    PF JT2-6-5.5X25 EJOGUARD A16
    Unit
    500
    PF JT2-6-5.5X25 EJOGUARD A16 BR98400120 5.5 0 - none 25.0 Carbon Steel 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    0 - none
    Length
    25.0
    Fastener material
    Carbon Steel
    Orderidentifier
    PF JT2-6-5.5X25 EJOGUARD A16
    Unit
    500
    PF JT2-6-5.5X55 EJOGUARD A16 BR98400121 5.5 0 - none 55.0 Carbon Steel 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    0 - none
    Length
    55.0
    Fastener material
    Carbon Steel
    Orderidentifier
    PF JT2-6-5.5X55 EJOGUARD A16
    Unit
    500
